Capacity max. (345 m³/h)

Pressure max. (125 mbar)

Vacuum max. (-125 mbar)

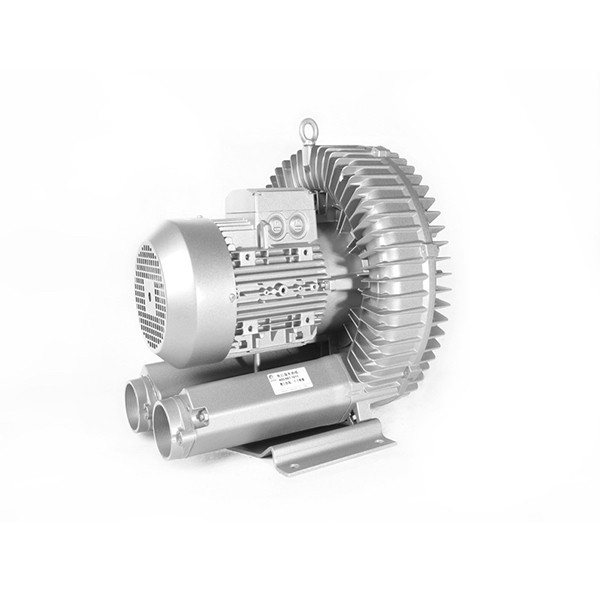

GHBH 002 34 AR6

SIDE CHANNEL BLOWER GOORUI | THREE-PHASES | SINGLE STAGE | ULTRA HIGH PERFORMANCE | 6 SERIES

Side channel blowers are used in demanding industrial environments for vacuum or pressure applications. They are non-contact, dry-running, virtually maintenance-free and are modern replacements for old pumps. One of the most important parts of the blower are quality bearings, which is why we are using bearings from the best brands such as SKF or NSK, which are leaders in their fields and are an integral part of GOORUI blowers.

Goorui has developed a high quality range of side channel blowers that competes with other EU manufacturers and in many cases are interchangeable with Siemens, Elmo Rietschle, FPZ, Elektror, Airtech, Becker pumps ........

Technology: contactless impeller
Stage: single stage
Phase: three-phases
Other features: ultra high performance
Frequency: 50 Hz / 60 Hz
Motor power: 1.6 kW / 2.05 kW
Noise: 65 dB / 71 dB
Max. Air Flow: 345 m³/h / 415 m³/h
Max. Pressure: 125 mbar / 130 mbar
Max. Vacuum: -125 mbar / -105 mbar
Weight: 24 kg

Files to download

GHBH 002 34 AR6 Performance curve
