• GHBH 002 34 AR7
  • GHBH 002 34 AR7

    Capacity max. (420 m3/h)

    Pressure max. (100 mbar)

    Vacuum max. (-100 mbar)

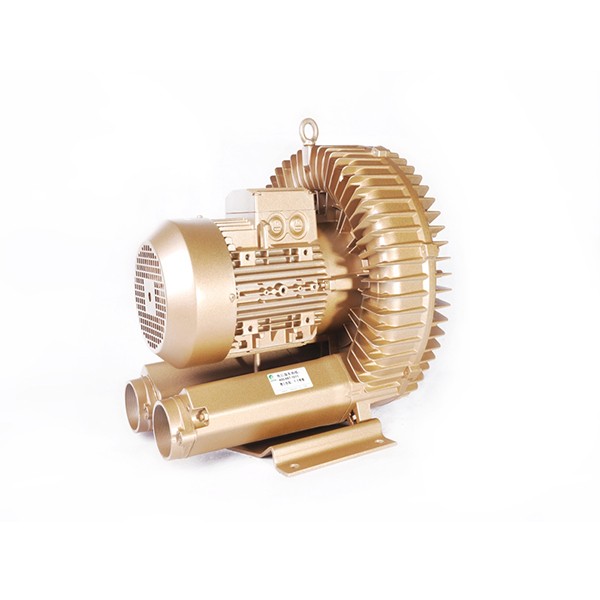

    GHBH 002 34 AR7

    SIDE CHANNEL BLOWER GOORUI | THREE-PHASES | SINGLE STAGE | ULTRA HIGH PERFORMANCE | 7 SERIES

    Side channel blowers are used in demanding industrial environments for vacuum or pressure applications. They are non-contact, dry-running, virtually maintenance-free and are modern replacements for old pumps. One of the most important parts of the blower are quality bearings, which is why we are using bearings from the best brands such as SKF or NSK, which are leaders in their fields and are an integral part of GOORUI blowers.


    Goorui has developed a high quality range of side channel blowers that competes with other EU manufacturers and in many cases are interchangeable with Siemens, Elmo Rietschle, FPZ, Elektror, Airtech, Becker pumps ........

    Technology: contactless impeller
    Stage: single stage
    Phase: three-phases
    Other features: ultra high performance
    Frequency: 50 Hz / 60 Hz
    Motor power: 1.6 kW / 2.05 kW
    Noise: 70 dB / 73 dB
    Max. Air Flow: 420 m³/h / 500 m³/h
    Max. Pressure: 100 mbar / 100 mbar
    Max. Vacuum: -100 mbar / -110 mbar
    Weight: 29 kg

    Do you have a question or are you interested for GHBH 002 34 AR7

    qc

    Files to download

    GHBH 002 34 AR7 Performance curve
