Capacity max. (210 m³/h)

Pressure max. (100 mbar)

Vacuum max. (-110 mbar)

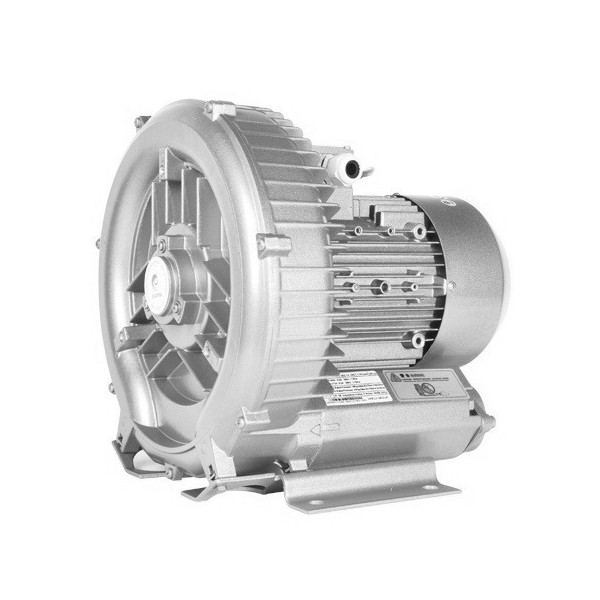

GHBH 1D2 34 1R5

SIDE CHANNEL BLOWER GOORUI | THREE-PHASES | SINGLE STAGE | HIGH PERFORMANCE | 5 SERIES

Side channel blowers are used in demanding industrial environments for vacuum or pressure applications. They are non-contact, dry-running, virtually maintenance-free and are modern replacements for old pumps. One of the most important parts of the blower are quality bearings, which is why we are using bearings from the best brands such as SKF or NSK, which are leaders in their fields and are an integral part of GOORUI blowers.

Goorui has developed a high quality range of side channel blowers that competes with other EU manufacturers and in many cases are interchangeable with Siemens, Elmo Rietschle, FPZ, Elektror, Airtech, Becker pumps ........

Technology: contactless impeller
Stage: single stage
Phase: three-phases
Other features: high performance
Frequency: 50 Hz / 60 Hz
Motor power: 0.85 kW / 0.95 kW
Noise: 64 dB / 70 dB
Max. Air Flow: 210 m³/h / 255 m³/h
Max. Pressure: 100 mbar / 70 mbar
Max. Vacuum: -110 mbar / -80 mbar
Weight: 18 kg

Files to download

GHBH 1D2 34 1R5 Performance curve
