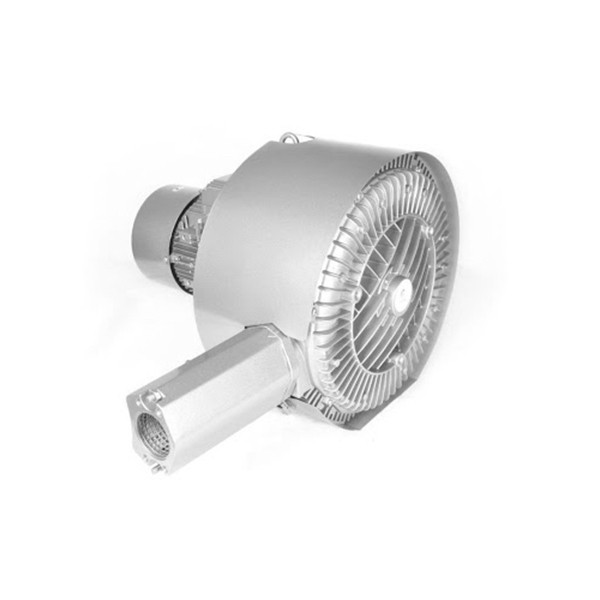

GHBH 027 36 BR9

Side channel blowers are used in demanding industrial environments for vacuum or pressure applications. They are non-contact, dry-running, virtually maintenance-free and are modern replacements for old pumps. One of the most important parts of the blower are quality bearings, which is why we are using bearings from the best brands such as SKF or NSK, which are leaders in their fields and are an integral part of GOORUI blowers.

Goorui has developed a high quality range of side channel blowers that competes with other EU manufacturers and in many cases are interchangeable with Siemens, Elmo Rietschle, FPZ, Elektror, Airtech, Becker pumps ........

Technology: contactless impeller
Stage: double stage
Phase: three-phases
Other features: ultra high performance & pressure
Frequency: 50 Hz / 60 Hz
Motor power: 20 kW / 23 kW
Noise: 75 dB / 84 dB
Max. Air Flow: 1940 m³/h / 2310 m³/h
Max. Pressure: 200 mbar / 130 mbar
Max. Vacuum: -220 mbar / -160 mbar
Weight: 212 kg

Are you interested?

Files to download

GHBH 027 36 BR9 Performance curve
